In the rapidly evolving world of electric vehicles (EVs), the role of a reliable charging infrastructure is crucial. One essential component that ensures the safety of EV chargers is the GFCI. And one important question that often arises is whether EV chargers need this protector. We’ll explore more of this
What are GFCI protectors?
First of all, let’s understand what a GFCI protector is. It is short for Ground Fault Circuit Interrupter and is a safety device that can quickly cut off electrical power in the event of a ground fault. Ground faults can occur when electricity takes an unintended path to the ground, such as through a damaged wire or a wet environment. This can cause a serious risk of electric shock.
Regarding more components of an EV charger, you may read our Article Here .

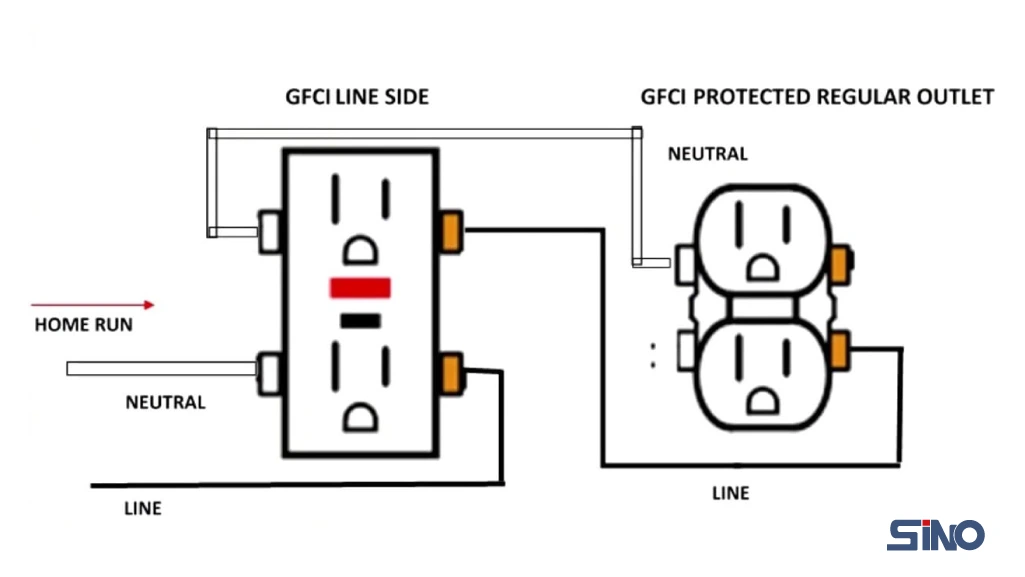

Understanding of fundamentals of GFCI for EV chargers
Ground fault circuit breakers work mainly by detecting the residual current (leakage current) in the circuit. It works as follows:
When in normal working state: If it is without a ground fault, the current in the circuit flows out of the phase line (live line) of the power supply, and then flows back to the neutral line (neutral line) of the power supply after the load. At this point, the currents in the phase and neutral lines are equal and opposite, and their magnetic fields cancel each other out. The zero sequence current transformer inside the GFCI detects almost zero residual current.
When a ground fault occurs: When a ground fault occurs, part of the current flows into the ground through the ground fault point, instead of all flowing back to the neutral line of the power supply. This causes the current in the phase line to be greater than the current in the neutral line, and a difference in current, or residual current, occurs between the two.
Trigger protection action: When the zero-sequence current transformer detects residual current, it sends its signal to the GFCI control circuit. When the remaining current reaches a certain value (usually a few milliamps to tens of milliamps), the control circuit will quickly act to cut off the power supply in the circuit, thereby preventing electric shock accidents.

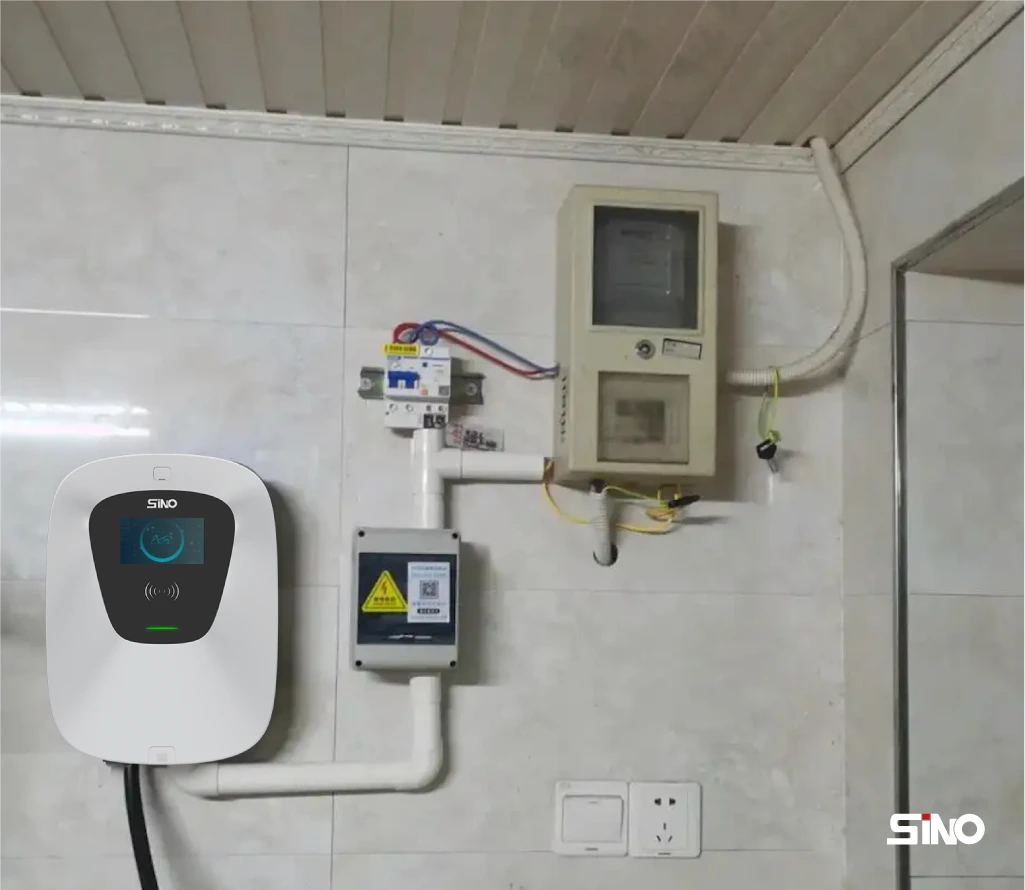

Where is the GFCI usually installed for EV chargers?
At the electrical panel:
One option is to install a GFCI breaker at the main electrical panel. This protects the entire circuit feeding the EV charger.
The breakers are easy to install and provide consistent protection. However, they can be more expensive than other options.
At the outlet:
Another option is to install a GFCI outlet where the EV charger is plugged in. This protects only the specific outlet and the EV charger plugged into it.
The outlets are relatively inexpensive and easy to install. However, they may not provide as comprehensive protection as a GFCI breaker at the panel.
In-line:
Some EV chargers come with an in-line GFCI device. This is installed between the electrical source and the charger and provides protection specifically for the charger.
These In-line devices are convenient and can be a good option if your electrical panel or outlet does not have its protection. However, they may be more expensive than a standard GFCI outlet.
Considerations when installing a GFCI for EV chargers
Compatibility:
Make sure the GFCI you choose is compatible with your EV charger and electrical system. Check the manufacturer’s specifications and consult an electrician if necessary.
Location:
Install the GFCI in a location that is accessible and easy to reset in case of a tripped GFCI. Avoid installing it in a location that is difficult to reach or hidden.
Weatherproofing:
If the EV charger is installed outdoors, make sure the GFCI is weatherproof to protect against moisture and other environmental factors.
Code compliance:
Check local electrical codes to ensure that your GFCI installation meets all requirements. Electrical codes vary by location, so it’s important to follow the correct procedures to ensure safety and compliance.
Functions for EV Chargers
Protecting Against Electric Shock
One of the primary functions of the GFCI for EV chargers is to protect users from electric shock. If there is a ground fault, the device can cut off the power in milliseconds, preventing the flow of dangerous currents through the human body. This is especially important as EV chargers handle high voltages and currents.
In outdoor or damp locations where EV chargers, especially DC EV chargers are often installed, the risk of electric shock is increased due to the moisture. The GFCI provides some kind of safety in such situations. It can detect such ground faults in time and cut off power in a very short time, thereby avoiding harm to the human body.
Preventing Electrical Fires
Ground faults can also lead to electrical fires by causing overheating in the wiring or electrical components. The GFCI for EV chargers helps prevent such fires by promptly interrupting the power supply when a ground fault is detected.
By cutting off the power before excessive heat can build up, the device reduces the risk of damage to the charging equipment and surrounding property.
Ensuring Equipment Safety
In addition to protecting people, the GFCI also safeguards the EV charger itself. By detecting and interrupting ground faults, it prevents damage to the internal circuitry and components of the charger, prolonging its lifespan.
It also helps protect other electrical devices connected to the same electrical circuit by preventing the spread of electrical faults.
Compliance with Safety Standards
Many countries and regions have strict safety standards and regulations that require the installation of GFCI protection for electrical equipment, including EV chargers. By using a GFCI-compliant EV charger, users can ensure that they are in compliance with these standards and avoid potential legal issues.Also, we have essential guide for EV charging safety here for your reference.
For EV chargers, the need for a GFCI protector depends on several factors.
Safety Considerations:
EV chargers handle a significant amount of electrical power. Any electrical malfunction or fault can lead to dangerous situations. A GFCI protector can provide an extra layer of safety by detecting and interrupting ground faults promptly. This is especially important in areas where there is a risk of water exposure, such as in garages or outdoors.
In case of a fault, a GFCI can prevent electric shock to the user and reduce the risk of damage to the vehicle and the charging equipment.
Installation Locations:
If the EV charger is installed in a location where there is a higher risk of water or moisture, such as near a swimming pool, a GFCI protector is highly recommended.
Outdoor installations are also more likely to be exposed to weather conditions that can increase the risk of ground faults, so a GFCI can be a valuable safety measure.
However, it’s important to note that not all EV chargers come with built-in GFCI protection. In such cases, a separate GFCI protector may need to be installed. Additionally, proper installation and maintenance of the GFCI protector are crucial to ensure its effectiveness.
Regulations and Standards:
In many regions, electrical codes and regulations may require the use of GFCI protectors for certain types of electrical installations, including EV chargers. Compliance with these regulations is essential to ensure the safety of users and property.
Manufacturers also often recommend the use of GFCI protectors to meet safety standards and warranties.
Conclusion
The GFCI plays a vital role in ensuring the safety and reliability of EV chargers. By understanding its fundamentals and functions, we can better appreciate the importance of this essential safety device in the world of electric vehicles. Whether at home, or in public fast charging stations, the GFCI for EV chargers is a crucial component that helps protect people, property, and equipment from the risks associated with electrical faults.
Remember, safety should always be a top priority when dealing with electrical equipment, and EV chargers are no exception.
