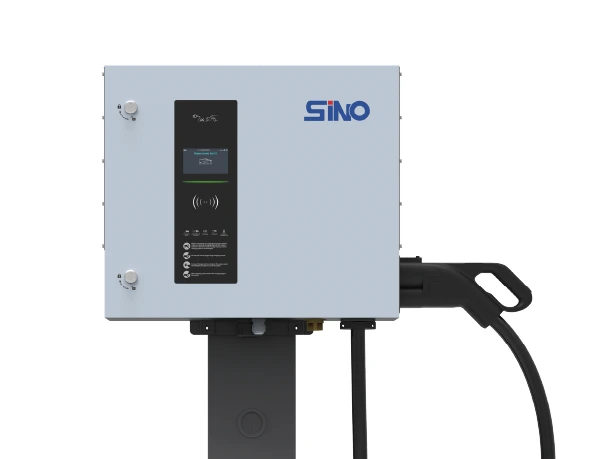

PEVC3401E EV CHARGER (CCS1 | CCS2 | CHAdeMO)

DC EV charging up to 30kW

Space-saving and highly cost-effective EV charger,
specially designed for your commercial charging.

Bring fast to your business charging

PEVC3401E series DC electric vehicle charger – the top choice for powering your new energy battery electric vehicle today. Designed for quick charging in both public and private locations, this EV charger is perfect for commercial fleet operators, EV infrastructure operators, service providers, and EV dealer workshops.

icon_advantage_01_design

Business-Focused Design

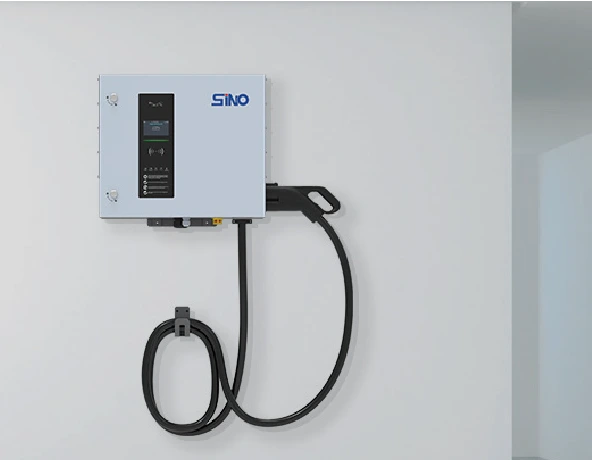

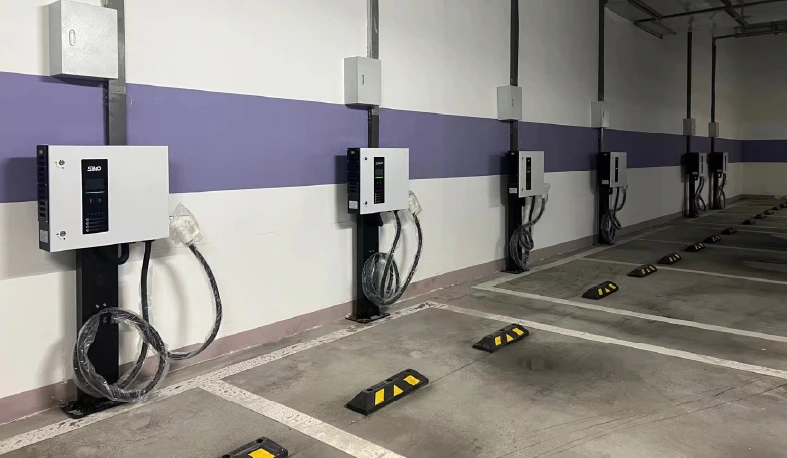

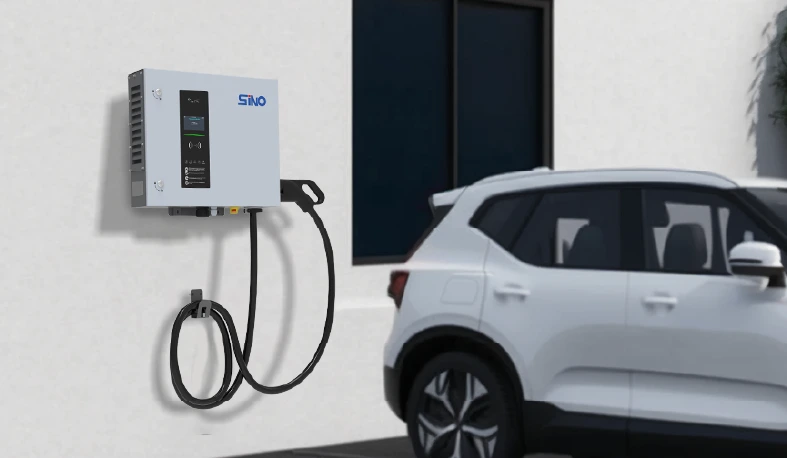

Designed for business charging, wall-mounted and stand-mounted options for homeowners.

Compatible Charger Connectors

Supports widely used charger connectors, including CCS1, CCS2 and CHAdeMO.

Multi-directional protection

Multiple protection mechanisms, IP54 rating, dustproof and waterproof.

Smart Connectivity

Seamless integration with smart systems for efficient communication and control.

User Identification and Management

Optional RFID/App etc. for your family identification and management.

User-Friendly Operation

Easy to install and operate, ensuring a hassle-free charging experience for home users.

Quality Guarantee

SINO ENERGY strives to design innovative products while maintaining superior quality and international safety standards. Our 500+ invention patents and 300+ software copyrights, along with various certifications such as ISO16949, CE, TUV, CMMI, OCPP and UL, demonstrate our commitment to innovation and quality.

3401 Certification certificate
General Specifications
Charger model
Connector
Mounting
Cable
PEVC3401E
CCS1 | CCS2 | CHAdeMO

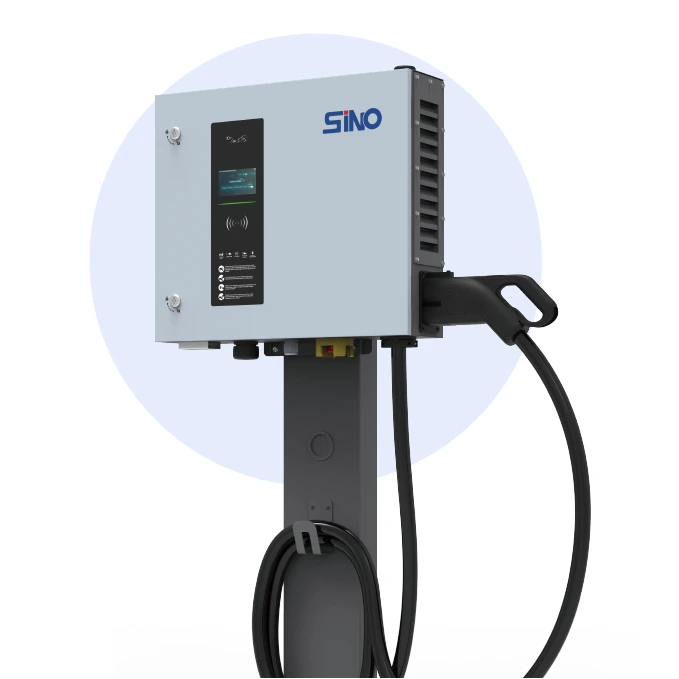

Wall-mount | Stand-mount
5m ( Customizable )
Technical Specifications
Power Supply
Certification
Certificate
Safety
EMI
IP, IK Level
30kW
IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24
CE
Class A
IP54, IK10
User Interface
LCD Display
User Authentication
LED Indicator
4.3" Color Touch Screen
RFID( ISO/IEC 14443) / APP
Green/Blue/Red
Connectivity
Backend
Charging Protocol
Backend Protocol
Ethernet(Bluetooth/Wi-Fi/4G Optional)
ISO 15118 , DIN 70121
OCPP 1.6 JSON

New generation protocol, charging is not only faster

*Data Source Lab
Total Power of EVSEs
0 + kW
CMS Charging Orders
0 +
CMS Charging Time
0 + Hours

Our Support

Product Manual
3.2Mb
Product specification
147.8Kb
Installation Guide
3.2Mb
User Manual

1.56Mb

Product Gallery

Down To Every Chip

The new generation of charging piles all use a new chip board design, which optimizes 15% of the space
3401E explosion diagram

multilingual interface

Triple-layer protection mechanism

Rapid cooling

IK10 & IP54+

Installation Guide

Thoughtful Tutorial
A brief description of the steps.Remove the two screws(M3) on the front cover,open the front cover, and then remove the internal screw (M6).
Play Video about video_cover

Faqs About SINO ENERGY Product

Our products are certified by TUV, CE, OCPP, etc. For more details, please visit the product page.

Of course, we are the original factory, have our own R&D team, production base, and support OEM/ODM, please contact us “info.sino@pmac.com.cn” for cooperation information.

The standard of the product, such as European standard, American standard, or Japanese standard. Ask our sales staff for details.

In the early stage, we can inspect our R&D, production and office bases through remote video mode. When the order is in progress, we can report the progress of the product through text reports, recorded videos, and live broadcasts.

Yes, we have a dedicated team to deliver custom solutions based on your specifications.Please send details to our info.sino@pmac.com.cn email.

APP publicity

SINO ENERGY APP

Our smart charging technology is available in all our charge points as standard, and allows your effectively manage your charge point.
With the SINO ENERGY app, you can instantly see the cost of every charge.
