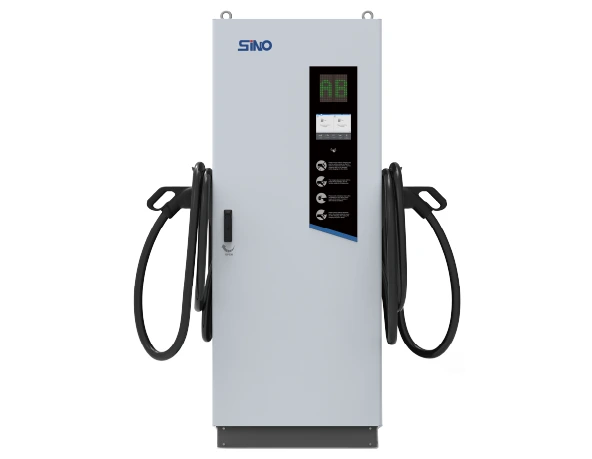

PEVC3108E EV CHARGER (CCS1 | CCS2 | CHAdeMO)

DC EV charging from 120kW to 240kW for your business

Ultra fast and highly cost-effective EV charger,
specially designed for your commercial charging.

Get Free A Quote

Bring fast to your business charging

PEVC3108E series DC electric vehicle charger- a high-power DC ultra-fast EV Charger. Certified by OCPP, TUV, and CE, and EMI compliant with Class B, the PEVC3108E/U series offers a reliable and efficient charging experience for your EV.

icon_advantage_01_design

Business-Focused Design

Designed for business charging, wall-mounted and stand-mounted options for homeowners.

Compatible Charger Connectors

Supports widely used charger connectors, including CCS1, CCS2 and CHAdeMO.

Multi-directional protection

Multiple protection mechanisms, IP54 rating, dustproof and waterproof.

Smart Connectivity

Seamless integration with smart systems for efficient communication and control.

User Identification and Management

Optional RFID/App etc. for your family identification and management.

User-Friendly Operation

Easy to install and operate, ensuring a hassle-free charging experience for home users.

icon_advantage_01_design

Business-Focused Design

Designed for business charging, wall-mounted and stand-mounted options for homeowners.

Compatible Charger Connectors

Supports widely used charger connectors, including CCS1, CCS2 and CHAdeMO.

Multi-directional protection

Multiple protection mechanisms, IP54 rating, dustproof and waterproof.

Smart Connectivity

Seamless integration with smart systems for efficient communication and control.

User Identification and Management

Optional RFID/App etc. for your family identification and management.

User-Friendly Operation

Easy to install and operate, ensuring a hassle-free charging experience for home users.

Quality Guarantee

SINO ENERGY strives to design innovative products while maintaining superior quality and international safety standards. Our 500+ invention patents and 300+ software copyrights, along with various certifications such as ISO16949, CE, TUV, CMMI, OCPP and UL, demonstrate our commitment to innovation and quality.

tuv+ocpp
General Specifications
Charger model
Connector
Number of Charging Interface
Cable
PEVC3108E
CCS1 | CCS2 | CHAdeMO
1 or 2
5m ( Customizable )
Technical Specifications
Power Supply
Certification
Certificate
Safety
EMI
IP, IK Level
120kW - 240kW
IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24
CE
Class B
IP54, IK10
User Interface
LCD Display
User Authentication
LED Indicator
7"Color Touch Screen(12" Customization)
RFID( ISO/IEC 14443) / APP
Green/Blue/Red
Connectivity
Backend
Charging Protocol
Backend Protocol
Ethernet(Bluetooth/Wi-F/4G Optional)
ISO 15118 , DIN 70121
OCPP 1.6 JSON

New generation protocol, charging is not only faster

*Data Source Lab
Total Power of EVSEs
0 + kW
CMS Charging Orders
0 +
CMS Charging Time
0 + Hours
Emial Us: info.sino@pmac.com.cn

Our Support

Product Manual

5.0Mb

Download

Product specification

650.2Kb

Download

Installation Guide

4.1Mb

Download

User Manual

4.1Mb

Download

Model comparison


PEVC3108E
PEVC3107E
Rated Power120kW - 240kW60kW - 160kW
Weatherproof✔✔
OCPP1.6 Fully Certified✔
TUV Certifcation✔
Charging SpeedUltra FastUltra Fast
EMIClass BClass A

Product Gallery

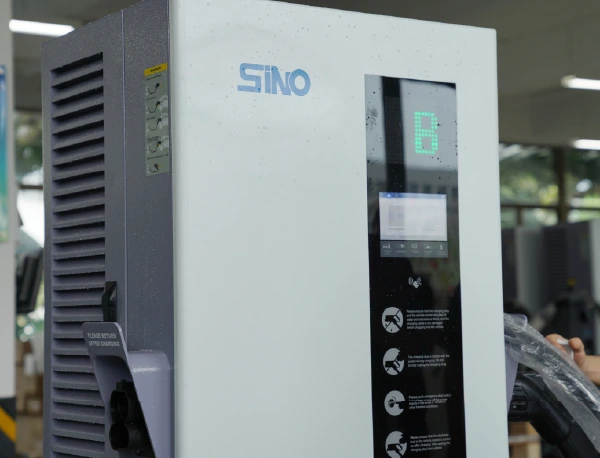

Down To Every Chip

The new generation of charging piles all use a new chip board design, which optimizes 15% of the space

temperature sensing temperature sensing

temperature sensing temperature sensing

temperature sensing temperature sensing

Installation Guide

Thoughtful Tutorial
A brief description of the steps.Remove the two screws(M3) on the front cover,open the front cover, and then remove the internal screw (M6).
Emial Us: info.sino@pmac.com.cn
Play Video about video_cover

Faqs About SINO ENERGY Product

Our products are certified by TUV, CE, OCPP, etc. For more details, please visit the product page.

Of course, we are the original factory, have our own R&D team, production base, and support OEM/ODM, please contact us “info.sino@pmac.com.cn” for cooperation information.

The standard of the product, such as European standard, American standard, or Japanese standard. Ask our sales staff for details.

In the early stage, we can inspect our R&D, production and office bases through remote video mode. When the order is in progress, we can report the progress of the product through text reports, recorded videos, and live broadcasts.

Yes, we have a dedicated team to deliver custom solutions based on your specifications.Please send details to our info.sino@pmac.com.cn email.

Not seeing the option youre looking for? Have our sourcing experts assist you!
APP publicity

SINO ENERGY APP

Our smart charging technology is available in all our charge points as standard, and allows your effectively manage your charge point.
With the SINO ENERGY app, you can instantly see the cost of every charge.
